显微镜/光学相关设备 的结果:186条 小分类有 1 种 (如果显示出来的搜索结果过多,可以通过以下小分类筛选您要的产品种类)
更多参数()
收起
-
1-1925-01 共有2种
变焦立体显微镜(带LED照明)
¥6,070.00起
参考单价¥6,070.00起
-
1-1926-01 共有2种
变焦双目立体显微镜(带LED照明)
¥7,550.00起
参考单价¥7,550.00起
-
1-1928-01 共有2种
金属显微镜
¥15,000.00起
参考单价¥15,000.00起
-
1-2246-01 共有1种
LED 环形灯
¥2,160.00起
参考单价¥2,160.00起
-
1-3348-01 共有1种
生物显微镜
¥4,740.00起
参考单价¥4,740.00起
-
1-3444-01 共有2种
可充电立体显微镜
¥3,620.00起
参考单价¥3,620.00起
-
1-3481-01 共有4种
照明灯具
¥2,740.00起
参考单价¥2,740.00起
-
1-4866-01 共有6种
LED灯(USB接口)
¥1,820.00起
参考单价¥1,820.00起
-
1-4872-11 共有1种
光源控制器
¥2,130.00起
参考单价¥2,130.00起
-
1-4923-01 共有2种
倒置显微镜(AE 2000系列)
咨询
-
1-6639-02 共有2种
立体显微镜DSZ系列
¥18,500.00起
参考单价¥18,500.00起
-
1-7058-21 共有2种
双目立体显微镜
¥2,500.00起
参考单价¥2,500.00起
-
1-7238-01 共有1种
溶质测定用板 STJ-0154系列
¥4,610.00起
参考单价¥4,610.00起
-
1-7374-11 共有1种
体视显微镜用白光LED照明
¥5,870.00起
参考单价¥5,870.00起
-
1-8585-01 共有2种
实体显微镜 EMZ系列
¥22,900.00起
参考单价¥22,900.00起
-
1-9214-01 共有4种
金属反射显微镜
¥135.00起
参考单价¥135.00起
-
1-9216-81 共有2种
倒立金相显微镜
¥27,500.00起
参考单价¥27,500.00起
-
1-9227-02 共有2种
立体显微镜4向独立落射照明用LED照明装置
¥2,130.00起
参考单价¥2,130.00起
-
1-9227-11 共有1种
立体显微镜用LED照明装置
¥1,520.00起
参考单价¥1,520.00起
-
1-9228-01 共有1种
LED 透射照明装置
¥3,020.00起
参考单价¥3,020.00起
-
1-9940-01 共有1种
立体显微镜用LED照明装置
¥2,610.00起
参考单价¥2,610.00起
-
2-1146-01 共有5种
变焦镜头实体显微镜 SZM系列
¥9,620.00起
参考单价¥9,620.00起
-
2-2453-81 共有1种
LED环形灯
¥3,719.00起
参考单价¥3,719.00起
-
2-2633-11 共有2种
变焦双眼立体显微镜
¥6,100.00起
参考单价¥6,100.00起
-
2-4073-01 共有2种
双目立体显微镜(单倍率)
¥2,050.00起
参考单价¥2,050.00起
-
2-4074-11 共有4种
双目立体显微镜
¥2,450.00起
参考单价¥2,450.00起
-
2-5048-12 共有1种
显微镜更换灯
¥86.00起
参考单价¥86.00起
-
3-106-01 共有2种
双目立体显微镜(带臂)
¥482.00起
参考单价¥482.00起
-
3-107-01 共有2种
变焦立体显微镜(带柔性照明)
¥9,000.00起
参考单价¥9,000.00起
-
3-5537-21 共有4种
实体显微镜
¥20,300.00起
参考单价¥20,300.00起
-
¥6,070.00起 参考单价¥6,070.00起
查看详情 >
编号 | 型号 | 总倍率 | 规格 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-1925-01 | CP745LED | 7~45× | 双筒望远镜 | 1台 | 6,070.00 | 0 | 0 | 37 | | **12 |
1-1925-02 | CP745LEDTrinocular | 7~45× | 三眼款 | 1台 | 7,290.00 | 0 | 0 | 16 | | **12 |
-
¥7,550.00起 参考单价¥7,550.00起
查看详情 >
编号 | 型号 | 规格 | 综合倍率 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-1926-01 | SZ-8000 | 双筒望远镜 | 6.7~45× | 1台 | 7,550.00 | 0 | 0 | 8 | | **12 |
1-1926-02 | SZ-8003 | 三眼 | 6.7~45× | 1个 | 9,350.00 | 0 | 0 | 6 | | **13 |
-
¥15,000.00起 参考单价¥15,000.00起
查看详情 >
编号 | 型号 | 规格 | 综合倍率 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-1928-01 | MT-320 | 双眼 | 40~400× | 1台 | 15,000.00 | 0 | 0 | 6 | | **12 |
1-1928-02 | MT-323 | 三眼 | 40~400× | 1台 | 17,400.00 | 0 | 0 | 1 | | **13 |
-
¥2,160.00起 参考单价¥2,160.00起
查看详情 >
编号 | 型号 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-2246-01 | NSL30-AD12 | 1个 | 2,160.00 | 0 | 0 | 4 | | **21 |
-
¥4,740.00起 参考单价¥4,740.00起
查看详情 >
编号 | 型号 | 总放大系数 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-3348-01 | BM-322 | 40~1000x | 1台 | 4,740.00 | 0 | 0 | 22 | | **12 |
-
¥3,620.00起 参考单价¥3,620.00起
查看详情 >
编号 | 型号 | 总倍率 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-3444-01 | ST-30R/DL-LEDCordless | 10×20× | 1台 | 3,620.00 | 0 | 0 | 8 | | **12 |
1-3444-02 | ST-40R/DL-LEDCordless | 20×40× | 1台 | 3,800.00 | 0 | 0 | 7 | | **13 |
-
¥2,740.00起 参考单价¥2,740.00起
查看详情 >
编号 | 型号 | 发光颜色 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-3481-01 | TSPA22×8-57W | 白色 | 1个 | 2,740.00 | 0 | 0 | 0 | 34天左右 | **22 |
1-3481-02 | TSPA22×8-57R | 红 | 1个 | 2,740.00 | 0 | 0 | 0 | 30天左右 | **22 |
1-3481-03 | TSPA22×8-57G | 绿色 | 1个 | 2,740.00 | 0 | 0 | 0 | 34天左右 | **22 |
1-3481-04 | TSPA22×8-57B | 蓝色 | 1个 | 2,740.00 | 0 | 0 | 0 | 34天左右 | **22 |
-
¥1,820.00起 参考单价¥1,820.00起
查看详情 >
编号 | 型号 | 类型 | 照明部分尺寸(mm) | LED数 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-4866-01 | LRF-40/28W-USB | 环型 | 内径φ28 | 8个 | 1个 | 2,030.00 | 0 | 0 | 0 | 36天左右 | **2Y |
1-4866-02 | LRF-45/32W-USB | 环型 | 内径φ32 | 8个 | 1个 | 2,030.00 | 0 | 0 | 0 | 34天左右 | **2Y |
1-4866-03 | LRF-66/50W-USB | 环型 | 内径φ50 | 24个 | 1个 | 2,840.00 | 0 | 0 | 0 | 34天左右 | **2Y |
1-4869-01 | LME-40/40W-USB | 面型 | 40×40 | 1个 | 1个 | 3,140.00 | 0 | 0 | 0 | 34天左右 | **2Y |
1-4871-01 | LCP-8/14W3-USB | 点型 | φ8×12 | 1个 | 1个 | 1,820.00 | 0 | 0 | 0 | 50天左右 | **2Y |
1-4872-01 | 主体 | 线型 | 100×15 | 12个 | 1个 | 2,530.00 | 0 | 0 | 0 | 34天左右 | **2Y |
-
¥2,130.00起 参考单价¥2,130.00起
查看详情 >
编号 | 型号 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-4872-11 | NS-USB-BC501 | 1个 | 2,130.00 | 0 | 0 | 0 | 34天左右 | **21 |
-
编号 | 型号 | 规格 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-4923-01 | AE2000双目 | 双目 | 1个 | 咨询 | 0 | 0 | 0 | 22天左右 | **20 |
1-4923-02 | AE2000三眼 | 三目 | 1个 | 咨询 | 0 | 0 | 0 | 22天左右 | **20 |
-
¥18,500.00起 参考单价¥18,500.00起
查看详情 >
编号 | 型号 | 照明 | 台板 | 电源 | 高度(mm) | 重量(g) | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-6639-02 | DSZ-44SB-S-260 | LED(球数60个·6400K±5%) | 135×195 | AC100-240V50/60Hz | 326 | 4300 | 1个 | 19,300.00 | 0 | 0 | 0 | 25天左右 | **22 |
1-6639-11 | DSZ-44PF15-260 | 落射照明圆形荧光灯(15W) | 208×217、PA(晴纶)制(白色、黑色×各1枚) | AC100V50/60Hz | 339.5 | 5500 | 1台 | 18,500.00 | 0 | 0 | 0 | 23天左右 | **22 |
-
¥2,500.00起 参考单价¥2,500.00起
查看详情 >
编号 | 型号 | 综合倍率(mm) | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-7058-21 | YLC-ST-115(本体) | 10(23.0)×・20(11.5) | 1台 | 4,000.00 | 0 | 0 | 4 | | **12 |
1-7058-15 | MIC-096Q | LED落射照明(环型)ID60mm | 1台 | 2,500.00 | 0 | 0 | 18 | | **12 |
-
¥4,610.00起 参考单价¥4,610.00起
查看详情 >
编号 | 型号 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-7238-01 | STJ-0154 | 1套 | 4,610.00 | 0 | 0 | 0 | 30天左右 | **22 |
-
¥5,870.00起 参考单价¥5,870.00起
查看详情 >
编号 | 型号 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-7374-11 | HDR61WJ/LCD-21 | 1套 | 5,870.00 | 0 | 0 | 8 | | **22 |
-
¥22,900.00起 参考单价¥22,900.00起
查看详情 >
编号 | 型号 | 综合倍率 | 重量 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-8585-01 | EMZ-5PK/10 | 7×~45× | 4.8kg | 1台 | 21,100.00 | 0 | 0 | 0 | 27天左右 | **21 |
1-8585-02 | EMZ-13PK/10 | 10×~70× | 5.0kg | 1台 | 代替品编号::停止销售 | 0 | 0 | 0 | 另询 | **21 |
-
编号 | 型号 | 规格 | 综合倍率 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-9214-01 | TMR-1 | 三目 | 50×~600× | 1台 | 代替品编号:1-9214-21 | 0 | 0 | 0 | 另询 | **22 |
1-9214-11 | C接口适配器 | - | 1× | 1个 | 990.00 | 0 | 0 | 0 | 23天左右 | **22 |
1-9214-12 | 备用灯6V20W | - | - | 1个 | 135.00 | 0 | 0 | 0 | 23天左右 | **22 |
1-9214-21 | TMR-1 | 三目 | 50×~600× | | 26,000.00 | 0 | 0 | 0 | 110天左右 | **22 |
-
¥27,500.00起 参考单价¥27,500.00起
查看详情 >
编号 | 型号 | 规格 | 综合倍率 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-9216-81 | BMI-2 | 双眼 | 50×~400× | 1台 | 代替品编号::停止销售 | 0 | 0 | 0 | 另询 | **22 |
1-9216-82 | BMI-3 | 三眼 | 50×~400× | 1台 | 代替品编号::停止销售 | 0 | 0 | 0 | 另询 | **22 |
-
¥2,130.00起 参考单价¥2,130.00起
查看详情 >
编号 | 型号 | 最大照度 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-9227-02 | 4季 | 20000lux | 1个 | 2,130.00 | 0 | 0 | 16 | | **22 |
1-9227-03 | W-EPlus | 50000lux | 1个 | 2,130.00 | 0 | 0 | 17 | | **22 |
-
¥1,520.00起 参考单价¥1,520.00起
查看详情 >
编号 | 型号 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-9227-11 | SIMPLE5 | 1个 | 1,520.00 | 0 | 0 | 9 | | **22 |
-
¥3,020.00起 参考单价¥3,020.00起
查看详情 >
编号 | 型号 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-9228-01 | MR-2 | 1个 | 3,020.00 | 0 | 0 | 9 | | **21 |
-
¥2,610.00起 参考单价¥2,610.00起
查看详情 >
编号 | 型号 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
1-9940-01 | MIC-199 | 1个 | 2,610.00 | 0 | 0 | 20 | | **13 |
-
¥9,620.00起 参考单价¥9,620.00起
查看详情 >
编号 | 型号 | 规格 | 眼宽范围 | 工作距离 | 聚焦上下移动 | 尺寸 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
2-1146-01 | SZM-B-NOM | - | - | - | - | - | 1台 | 9,620.00 | 0 | 0 | 0 | 23天左右 | **24 |
2-1146-04 | SZM-T-NOM | - | - | - | - | - | 1台 | 14,700.00 | 0 | 0 | 0 | 27天左右 | **24 |
2-1146-26 | SZM-T-LED | 三眼(环形LED照明) | 43~67mm | 100mm | 48mm | 200×290×380mm | 1台 | 代替品编号:2-1146-36 | 0 | 0 | 0 | 另询 | **24 |
2-1146-33 | SZM-B-LED | 双目(环形LED照明) | 43~67mm | 100mm | 48mm | 200×290×380mm | 1台 | 17,100.00 | 0 | 0 | 0 | 41天左右 | **24 |
2-1146-36 | SZM-T-LED | 三眼(环形LED照明) | 43~67mm | 100mm | 48mm | 200×290×380mm | 1台 | 22,100.00 | 0 | 0 | 0 | 41天左右 | **24 |
-
¥3,719.00起 参考单价¥3,719.00起
查看详情 >
编号 | 型号 | 规格 | 尺寸(mm) | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
2-2453-81 | SL-77 | LED环形灯 | φ94×31(环形灯部分)、87×50×46 | 1套 | 代替品编号:1-9940-01 | 0 | 0 | 0 | 另询 | **22 |
-
¥6,100.00起 参考单价¥6,100.00起
查看详情 >
编号 | 型号 | 总放大系数 | 物镜放大率 | 目镜放大率 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
2-2633-11 | NSZ-405 | 10~45x | 1~4.5x | 10x | 1台 | 6,430.00 | 0 | 0 | 入库预定数21(货期未定) | 50天左右 | **14 |
2-2633-01 | NSZ-405 | 10~45x | 1~4.5x | 10x | | 代替品编号:2-2633-11 | 0 | 0 | 0 | 另询 | **12 |
-
¥2,050.00起 参考单价¥2,050.00起
查看详情 >
编号 | 型号 | 总倍率 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
2-4073-01 | S-20L(20个) | 20×(带灯) | 1台 | 代替品编号:2-4074-13 | 0 | 0 | 0 | 另询 | **12 |
2-4073-03 | S-20L(60×) | 60×(带灯) | 1台 | 代替品编号:2-4074-14 | 0 | 0 | 0 | 另询 | **12 |
-
¥2,450.00起 参考单价¥2,450.00起
查看详情 >
编号 | 型号 | 总倍率 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
2-4074-11 | ST30RDL(10~20个) | 10×20× | 1台 | 2,450.00 | 0 | 0 | 7 | | **12 |
2-4074-12 | ST30RDL(20~40个) | 20×40× | 1台 | 2,450.00 | 0 | 0 | 7 | | **12 |
2-4074-13 | ST30RDL-LED(10~20个) | 10×20× | 1台 | 3,470.00 | 0 | 0 | 入库预定数12(货期未定) | 50天左右 | **13 |
2-4074-14 | ST30RDL-LED(20~40个) | 20×40× | 1台 | 3,470.00 | 0 | 0 | 4 | | **13 |
-
编号 | 型号 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
2-5048-12 | 交换灯 | 1个 | 86.00 | 0 | 0 | 18 | | **13 |
-
编号 | 型号 | 总倍率 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
3-106-01 | DE-263 | 10×20× | 1个 | 9,640.00 | 0 | 0 | 9 | | **13 |
3-106-11 | UV滤镜 | - | 1台 | 482.00 | 0 | 0 | 2 | | **13 |
-
¥9,000.00起 参考单价¥9,000.00起
查看详情 >
编号 | 型号 | 规格 | 总倍率 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
3-107-01 | VS-1B-GN | 双筒望远镜 | 6.7~45X | 1个 | 9,000.00 | 0 | 0 | 0 | 50天左右 | **13 |
3-107-02 | VS-1T-GN | 三眼 | 6.7~45X | 1个 | 10,300.00 | 0 | 0 | 1 | | **13 |
-
¥20,300.00起 参考单价¥20,300.00起
查看详情 >
编号 | 型号 | 尺寸(mm) | LED照明 | 综合倍率 | 目镜 | 物镜 | 销售包装 | RMB(含税) | 北京库存 | 上海库存 | 日本库存 | 参考货期 | 查询NO. |
3-5537-14 | STZ-171-TP-HZ | 约225×348×405 | 无 | 7.5×至50×(可缩放) | WF10×/23mm | 0.75×~5× | 1个 | 代替品编号::停止销售 | 0 | 0 | 0 | 另询 | **21 |
3-5537-13 | STZ-171-TLED-HZ | 约225×348×405 | LED | 7.5×至50×(可缩放) | WF10×/23mm | 0.75×~5× | 1个 | 代替品编号::停止销售 | 0 | 0 | 0 | 另询 | **21 |
3-5537-21 | STZ-161-TLED-HZ | 约220×306×367 | LED | 7.5×至45×(可缩放) | WF10×/20mm | 0.75×~4.5× | 1个 | 代替品编号::停止销售 | 0 | 0 | 0 | 另询 | **2Y |
3-5537-22 | STZ-161-TP-HZ | 约220×306×367 | 无 | 7.5×至45×(可缩放) | WF10×/20mm | 0.75×~4.5× | 1个 | 代替品编号::停止销售 | 0 | 0 | 0 | 另询 | **2Y |
-
1-1925-01 共有2种
特点:● 上下带有LED照明。
● 镜筒可拆下。
● 镜筒移动距离长(100mm),可以得到广范围的变焦比(1:6.4)。
规格:● 目镜:10倍(WF10×)
● 镜筒形式:倾斜角45°
● 瞳距调节范围:55~75mm
● 动作距离:100mm
● 变焦比:1:6.4
● 实际视野直径:φ20mm
● 载物台・直径:PMMA(亚克力)制、φ82mm
● 照明:LED
● 电源:AC100V~240V50/60Hz
● 电源线长度:1.3m(3P插头)
● 主机尺寸:250×300×490mm
● 重量:4.5kg
● 总放大倍数:7~45×
¥6,070.00起
参考单价¥6,070.00起
-
1-1926-01 共有2种
特点:● 上下带有LED照明。
● 镜筒可拆下。
● 镜筒移动距离长(105mm),可以得到较大范围的变焦比(1:6.7)。
规格:● 目镜:10倍(WF10×)
● 镜筒形式:倾斜角45°
● 瞳距调节范围:54~75mm
● 动作距离:105mm
● 变焦比:1:6.7
● 实际视野直径:φ22mm
● 载物台・直径:PMMA(亚克力)制、φ95mm
● 照明:LED
● 照明电源:AC100V~240V50/60Hz
● 电源线长度:1.3m(3P插头)
● 总放大倍数:6.7~45×
¥7,550.00起
参考单价¥7,550.00起
-
1-1928-01 共有2种
规格:● 目镜:WF-10×(视场数18)
● 物镜:4×・10×・40×
● 光源:6V20W卤素灯
● 载物台尺寸:150×140mm
● 焦点调节:单轴粗微动手柄
● 滤光片:蓝色、绿色、黄色
● 重量:9kg
● 总放大倍数:40~400×
¥15,000.00起
参考单价¥15,000.00起
-
1-2246-01 共有1种
特点:● 可拆下扩散板。
规格:● 型号:NSL30-AD12
● 尺寸(mm):85×127×35
● 体视显微镜用
● 光量调节:调光拨盘式(手动)
● 照度:无扩散板/4万Lux、带扩散板/1万Lux
● 电源:AC100V50/60Hz
● 安装部分直径:φ40~60mm
¥2,160.00起
参考单价¥2,160.00起
-
1-3348-01 共有1种
规格:● 目镜:WF10×(视场数18)
● 物镜:消色差物镜4×・10×・S40×・S100×(oil)
● 镜筒型式:双目观察头・倾斜角30°
● 焦点调节:粗微动同轴调焦方式(静止・带张力调节)、行程/2μm(左右)
● 载物台:124×140mm(前后移动50mm×左右移动75mm)
● 瞳距范围:55~75mm
● 照明:20W卤素灯(可调节光量)
● 电容:阿贝式N.A.1.25虹彩光圈・带滤光片支架
● 电源:AC100V50/60Hz
● 尺寸:约187×231×385mm
● 重量:约5.3kg
● 总放大倍数:40×~1000×
● ※使用
¥4,740.00起
参考单价¥4,740.00起
-
1-3444-01 共有2种
特点:● 取下电源线,可使用于户外检查等。
规格:● 目镜:WF10×
● 镜筒形式:双眼・倾斜角45°
● 照明:落射・透射/白色LED
● 电源:AC100V50/60Hz3P插头5号充电池×4个(内置)
● 附件:载物台(磨砂玻璃・白色黑色×各1片)・防尘罩
¥3,620.00起
参考单价¥3,620.00起
-
1-3481-01 共有4种
特点:● 可用作同轴照明、反射照明和泛光灯。
● 适用于定位和划痕、异物、污垢等的缺陷检查。
规格:● 尺寸:φ22×57.5mm
● 最大额定电流:0.70A
● 耗电量:3.0W
¥2,740.00起
参考单价¥2,740.00起
-
1-4866-01 共有6种
特点:● 适用于体视显微镜和微距变焦镜头的照明。
● 连接到LED控制器(另售)后,可以进行手动调光(256级)、更精细的PC调光和ON/OFF操作。
规格:● 电源:USB供电
● 电缆长度:1m
¥1,820.00起
参考单价¥1,820.00起
-
1-4872-11 共有1种
特点:● 与USB连接LED灯(另售)连接时,可进行手动调光(256级)、更精细的电脑调光和ON/OFF操作。
规格:● 型号:NS-USB-BC501
● 类型:LED控制器
● 配件:USB数据线、驱动程序、控制软件(支持的操作系统:Windows(R)XP/VistaTM/7)
¥2,130.00起
参考单价¥2,130.00起
-
1-4923-01 共有2种
特点:● 适用于日常工作和学生实习。
● 采用CCIS(无限远光学系统),光学性能出色。
● 具有LED照明、自动开/关功能,以降低环境负荷。
规格:● 综合倍率:40×~200×
● 尺寸(mm):217.5×556×492
● 目镜:N-WF10×(视野数20・2个一对・视度可调节)
● 物镜:CCIS平面投影相位4×・10×・20×
● 光学系统:无限远光学系统(CCIS)
● 镜筒型式:Geden顶式・倾斜角45°
● 照明:3WLED(连续调光式),附带光量指示器・自动开/关功能
● 电容器:相位差电容器N.A.O.30工作距离72mm虹膜光圈
● 左摇杆:4孔
● 电源:AC100~240V50/60Hz
● 重量:约11kg
-
1-6639-02 共有2种
规格:● 物镜:1×~4.4×(变焦比4.4)
● 目镜(实际视野):DSW10×(23)
● 镜体功能:倾斜角45°・360°旋转式、可调节双目视度(+5.6D±7.2D)
● 工作距离:90mm
● 电源线长:2m(2P插头)
¥18,500.00起
参考单价¥18,500.00起
-
1-7058-21 共有2种
规格:● 物镜:1×・2×
● 目镜:SWH10×
● 镜筒型式:倾斜角45°(可进行视度调节)
● 载物台:95mm(正面/白色、背面/黑色)
● 瞳距调节范围:55~75mm
● 动作距离:100mm
● 尺寸:295×280×410mm
● 重量:3.5kg
● 总放大倍数:10(23.0)×・20(11.5)×※()内为实际视野。
¥2,500.00起
参考单价¥2,500.00起
-
1-7238-01 共有1种
特点:● 便于粉体的显微镜扩散反射。
规格:● 尺寸(mm):76.5×25.5
● 重量(g):30
● 材质:黄铜・镀金
● 孔径:φ4mm(圆筒形)・φ3mm(圆锥形)×各7个
¥4,610.00起
参考单价¥4,610.00起
-
1-7374-11 共有1种
特点:● 寿命长、免维护的LED光源(约20,000小时)。
● 采用直流点灯方式,没有荧光灯那样的闪烁。
● 即使调节光线,色温也不会改变,所以外观不会改变。
● 发热量小,不影响被摄体的热量。
规格:● 光量调节:0~100%
● 代码长度:1.5m
● 额定输入电压:AC100V~240V
● 输出电压:DC21V(MAX)
● 输出电流:160mA
● 点灯方式:直流点灯方式
● 耗电量:6W
● 尺寸:HDR61WJ(照明部分)/外径Φ94×内径Φ61×高26mm、LCD-21(电源部分)/85×60×30mm
¥5,870.00起
参考单价¥5,870.00起
-
1-8585-01 共有2种
特点:● 通过使用选配的目镜和辅助物镜,可改变最低、最高倍率进行观察。
规格:● 双目、无照明
● 变焦比:6.5:1(6.5倍)、7:1(7倍)
● 目镜:SWF10×(视野数23mm)
● 物镜:0.7×~4.5×、1.0×~7.0×
● 电源:AC100V~120V50/60Hz
● 尺寸:350×265×330mm
● 用途:微小零件的检查、辅助作业、微小昆虫的观察、解剖等
¥22,900.00起
参考单价¥22,900.00起
-
1-9214-01 共有4种
特点:● 适用于金属非透明材料的表面观察。
● 可安装CCD摄像头・适配器。
规格:● 主体尺寸:219×433×417mm
● 载物台尺寸:140×160mm
● 电源:AC110V 50/60Hz 2P插头
● 光源:6V20W卤素灯
● 目镜:Wide field 10×2个
● 物镜:PL5×・PL10×・PL40×・PL60×
● 调焦:1轴粗微动调焦机构
● 重量:9kg
-
1-9216-81 共有2种
特点:● 通过物镜的照明(同轴外延照明)可观察不透光的试样。
● 物镜处于载物台之下呈倒立型,因此不管试样大小如何都可自由观察。
● 适用于使用正立型显微镜难以观察的场合。
规格:● 光源:6V20W卤素灯
● 接目镜:Wide field 10×2个(视野数18)
● 接物镜:PL5×・PL10×・PL20×・PL40×
● 调焦:1轴粗微动调焦机构
● 电源:AC220V 2P插头
● 尺寸:主体/200×580×350mm、载物台/180×150mm
● 重量:BMI-2/11kg、BMI-3/12kg
¥27,500.00起
参考单价¥27,500.00起
-
1-9227-02 共有2种
特点:● 可通过手边开关ON/OFF进行调光。
● 在反射率低的样品和高倍拍摄中发挥作用。
规格:● 电源:内置变压器(直接连接AC100V)
● 安装方法:3个固定点(安装部分φ60mm以下)
● 尺寸:80×110×20mm
¥2,130.00起
参考单价¥2,130.00起
-
1-9227-11 共有1种
特点:● 可通过把手开关进行ON/OFF和调光。
规格:● 规格:1方向落射
● 额定输入电压:AC100~240v
● 点灯方式:全点灯
● 调光方式:PWM(光量可变范围0~100%)
● 安装直径:φ40~φ61mm
● 色温:约8,000K(使用温暖滤色器时:约5,000K)
● 已通过PSE认证
¥1,520.00起
参考单价¥1,520.00起
-
1-9228-01 共有1种
特点:● 放在实体显微镜等支架上即可进行透射观察。
● 可通过把手进行ON/OFF和调光。
● 取下反射镜单元也可以作为反射式LED照明使用。
规格:● 型号:MR-2
● 舞台尺寸(mm):φ90
● 反光镜
● 电源:AC100V50/60Hz(内置变压器)
● 玻璃部分直径:φ60mm
● 控制器尺寸:90×115×43mm
¥3,020.00起
参考单价¥3,020.00起
-
1-9940-01 共有1种
特点:● 长使用寿命(20000小时)的LED光源。
● 调光时色温不变。
规格:● 照明部尺寸(内径×外径):φ60.5×φ93.5mm
● 光量调节:0~100%
● 额定输入电压:AC100~240V50/60Hz
● 输出电压:DC12.8V(MAX)
● 输出电流:280mA
● 最大照度:25000lux
● 控制部尺寸:60×33×108mm(突起部分除外)
¥2,610.00起
参考单价¥2,610.00起
-
2-1146-01 共有5种
特点:● 是便于观察和使用的实体显微镜。
● 通过转动变焦手轮,可以调节到适合的倍率和视野。
规格:● 物镜:0.7~4.5×
● 目镜:WF10×(视野数20)
● 镜筒倾角:45°
● 重量:5.3kg
● 综合倍率:7~45×
¥9,620.00起
参考单价¥9,620.00起
-
2-2453-81 共有1种
规格:● <SL-77>
● 光源:白色LED56灯
● 发光强度:38000Lux(MAX)
● 照射角度:50°
● 安装环径:φ49mm
● 使用高度范围:30~60mm
● 电源:AC220V
● 线长:主体/1.3m,电源部分/1.7m
● 重量:主体/140g、电源部分/125g
● 附属品:LED灯控制器・专用适配器环・AC适配器
¥3,719.00起
参考单价¥3,719.00起
-
2-2633-11 共有2种
规格:● 总放大倍数:10~45×
● 目镜:WF10×(视场数20)
● 物镜:1×~4.5×
● 变焦比:1:4.5
● 瞳距调整范围:52~75mm・动作距离97mm
● 镜筒型式:双眼目镜・倾斜角45°
● 照明:落射・透射/LED照明(光量可调)
● 电源:AC100~120V50/60Hz
● 主体尺寸:185×262×315mm
● 重量:4.5kg
● ※提供租赁设备。
¥6,100.00起
参考单价¥6,100.00起
-
2-4073-01 共有2种
特点:● 带有照明灯,便于观察。
规格:● 镜筒型式:倾斜角45°、视度可调节
● 载物台:φ60mm、PMMA(亚克力)制、表面/白色、背面/黑色
● 瞳距范围:55~75mm(动作距离90mm)
● 电源:AC100V50/60Hz(3P插头)
● 照明:12V10W
● 附件:眼罩・防尘罩
● 目镜:WF10×
● 单一放大倍数
¥2,050.00起
参考单价¥2,050.00起
-
2-4074-11 共有4种
特点:● 带有照明灯,便于观察。
规格:● 目镜:WF10×
● 镜筒型式:倾斜角45°・视度可调节
● 载物台:φ95mm磨砂玻璃
● 瞳距范围:55~75mm(动作距离)90mm
● 附件:眼罩・防尘罩
¥2,450.00起
参考单价¥2,450.00起
-
2-5048-12 共有1种
规格:● 型番:交換ランプ
● 6V15W(落射用)
-
3-106-01 共有2种

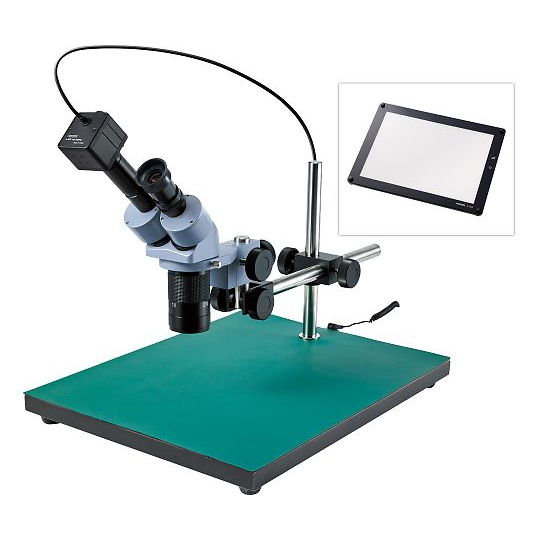

规格:● 总放大倍数:10×・20×
● 目镜:WF10×
● 物镜:1×・2×
● 镜筒方式:双眼・倾斜角45°
● 压片夹宽:53mm
● 臂长:885mm
-
3-107-01 共有2种
规格:● 总放大倍数:6.7~45×
● 目镜:10倍(WF10×)
● 镜筒形式:倾斜角45°
● 瞳距调整范围:55~75mm
● 变焦比:1:6.72
● 实际视场直径:φ22mm
● 载物台直径:φ95mm
● 照明:LED
● 照明输出调整:分级调整
● 照明臂长度:约300mm
● 照明电源:AV100~240V50/60Hz
● 主体尺寸:约240×300×400mm
¥9,000.00起
参考单价¥9,000.00起
-
3-5537-21 共有4种
特点:● 实体显微镜配备了兼容UVC标准的显微镜数数码系统。
规格:● 摄像元件:1/2.5英寸型CMOS
● 目镜:接目测微计安装框
● 物镜:镜筒内焦距式
● 电源:AC100~240V
● 镜筒:三眼45°倾斜镜筒
● 作业距离:110mm(不安装辅助物镜时)
● 有效像素:约500万像素
● 对应OS:Windows8以后(32bit及64bit)
● 焦距式:1:6
¥20,300.00起
参考单价¥20,300.00起
(select factoryPrice,z.Zu制造终了,目录页2015年,目录页6000号,HavaKuCun,式样,特长,catchcopy,thisZhengTiMinPrice,thisDanGeMinPrice,ZuDanGeMinPriceCode,ZuZhengTiMinPriceCode,ZuZhengTiMinPrice,ZuZhengTiDanGeMinPrice,icp.Price AS PriceA,icp.PriceD,icp.web公开标志,
icpD.Price AS danPriceA,icpD.PriceD as danPriceD,icpD.web公开标志 as danweb公开标志,
ips.HotSale,ips.SellProCount,[日文品牌名],ips.SellCustomerCount,[组cd],[动画link],ip.SysNo,[主画面一栏],[中文商品名],[中文商品名sub],[价格标志位],[价格],[上位表示区分01_ASONE精选],[上位表示区分02_超值],
[上位表示区分03_新品],[上位表示区分04_促销活动],[上位表示区分05_临时优先显示],[上位表示区分06_补充说明],[DefaultOrderId],[品牌],[品牌区分],商品详细画面的详细部的编号,ip.每组数量 as zucount from input0720 ip (nolock)
left join inputPro_Sell ips (nolock) on ips.Zcd=ip.[组cd]
left join dbo.InputChangePrice2 icp(nolock) on icp.pcode=ip.ZuZhengTiMinPriceCode
left join dbo.InputChangePrice2 icpD(nolock) on icpD.pcode=ip.ZuDanGeMinPriceCode
left join input0720_other iio(nolock) on iio.ProCode=ip.商品详细画面的详细部的编号
left join input0720_other_zu z (nolock) on z.ProZcd=ip.[组cd]
WHERE 表组明细顺='1' and isnull(iio.IsOnline,1)=1 and 组cd IN(select 组cd from input0720 ip(nolock) left join ProKunCun kc (nolock) on ip.商品详细画面的详细部的编号=kc.ProCode where 1=1 and 小分类名称=(select classname from dbo.Aos_Type(nolock) where Depth=2 and id=825) and 中分类名称='显微镜/光学相关设备')) as t
select DISTINCT LOWER([检索过滤分类编码]) as 检索过滤分类编码,[检索过滤分类名称],ImageUrl1 from input0720_ext where 检索过滤分类编码 in (select 个别检索的分类区分 from (select factoryPrice,[个别检索的分类区分],[组cd],[动画link],SysNo,[主画面一栏],[中文商品名],[中文商品名sub],[价格标志位],[价格],[上位表示区分01_ASONE精选],[上位表示区分02_超值],[上位表示区分03_新品],[上位表示区分04_促销活动],[上位表示区分05_临时优先显示],[上位表示区分06_补充说明],[DefaultOrderId],[品牌],[品牌区分],商品详细画面的详细部的编号,检索条件内容1,检索条件内容2,检索条件内容3,检索条件内容4,检索条件内容5,检索条件内容6,检索条件内容7,检索条件内容8 from input0720 (nolock) WHERE 1=1 and 组cd IN(select 组cd from input0720 (nolock) where 1=1 and 小分类名称=(select classname from dbo.Aos_Type(nolock) where Depth=2 and id=825))) as t) and 小分类='实体/金属显微镜' order by [检索过滤分类名称] desc
